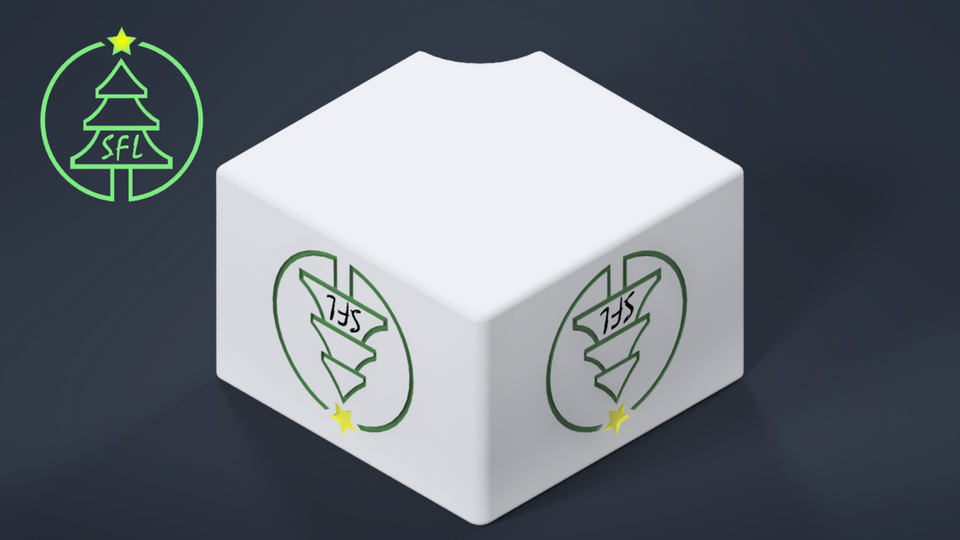

This is an angled bracket used with the Permatrack Pixel Mounting system. Each bracket gives your Permatrack mounting system a professional finish. These components are printed with PETG which is UV resistant and is intended to last for many years to come. These angles have a specially designed retention hole for a pixel to be added to the corner if you desire to have one and will work with bullet and square pixels. You can also order them without this retention hole.
These parts will NOT work with the Puck Track system.
Several common roof pitch angles are available as shown below. Custom angles can be created as well.
| ROOF PITCH | ANGLE |
|---|---|
| 1:12 | 170.480 |
| 2:12 | 161.080 |
| 3:12 | 151.920 |
| 4:12 | 143.140 |
| 5:12 | 134.760 |
| 6:12 | 126.860 |
| 7:12 | 119.480 |
| 8:12 | 112.620 |
| 9:12 | 106.260 |
| 10:12 | 100.380 |
| 11:12 | 94.980 |
| 12:12 | 90.000 |
| 13:12 | 85.420 |
| 14:12 | 81.200 |
| 15:12 | 77.320 |
| 16:12 | 73.740 |
We are delighted to have partnered with the great folks at Permatrack.US as an exclusive supplier of Permatrack Mounting brackets. The Permatrack Mounting system can be purchased from their website, www.permatrack.us.
Dimensions:
Length: Varies
Width: 45mm
Height: 31mm
Styles
- Blank Angled Horizontal
- Blank angled corner bracket with the the desired degree for the Permatrack mount
- Has no holes for pixels

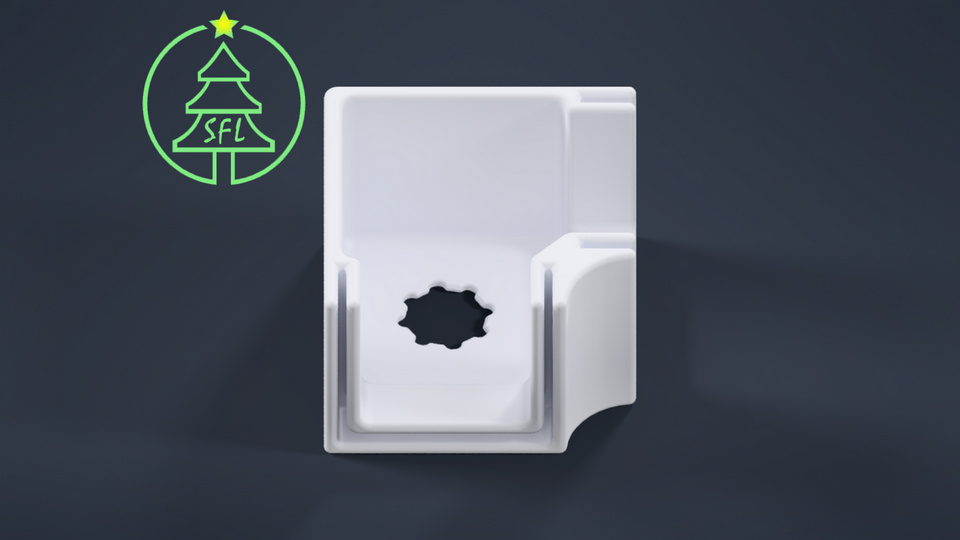

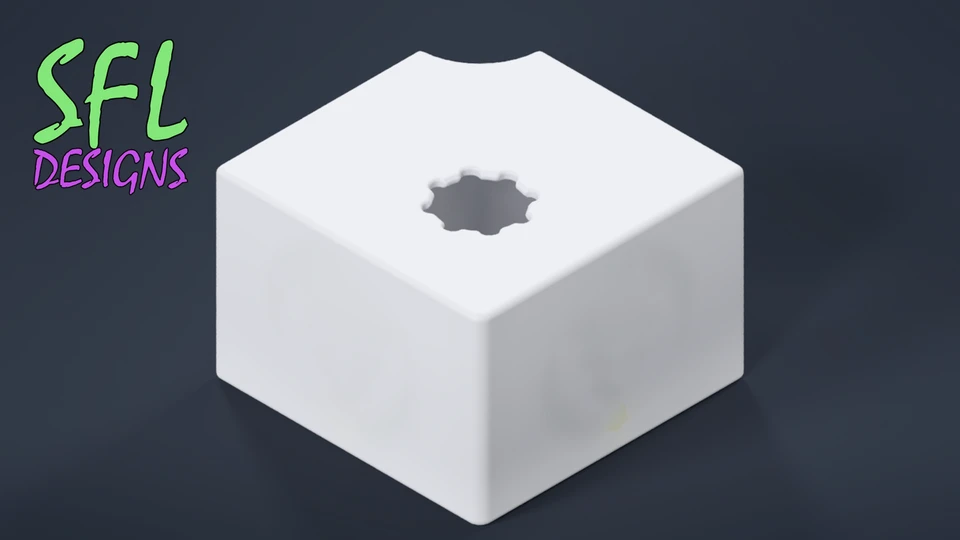

- Angled Horizontal with Pixel Provision
- Angled corner bracket with the the desired degree for the Bottom Hole Permatrack mount
- Specially designed retention hole for a pixel to be added
- Perfect fit for standard Bullet and Square Pixels
